Rega Neo PSU Mk2

Neo PSU MK2

The new Neo MK2 is housed in a redesigned case to bring it in line with other products in the range creating an improved family feel. The Neo MK2 PSU is an advanced turntable power supply providing user controllable fine speed adjustment, an advanced anti-vibration motor circuit and the convenience of electronic speed change. The Neo MK2 will make a welcome addition to any compatible Rega turntable by reducing motor noise, improving speed stability and rotational speed accuracy.

Rega Neo PSU Mk2

The Neo MK2 PSU is compatible with the following Rega turntable models:

P3-24 / RP3 / Planar 3 2016-current / RP6 / P5 / P7 / RP40 special edition / RP8 Or any older Rega turntable fitted with our aftermarket 24v upgrade kit.

Using the same DSP (digital signal processing) generator found in the Planar 10 power supply the Neo MK2 is built upon a high stability crystal.

The DSP generator will divide the accurate signal from the crystal to the exact frequency required to turn the platter at the selected speed whilst producing a near perfect sinusoidal waveform to drive the 24v motor. Fine speed adjustment is made via the rear panel using the supplied custom Neo trim tool (supplied).

Planar 6 and Planar 8 turntable models which include the Neo will now ship with the MK2 Neo supplied as standard.

Rega Neo PSU Mk2
Neo PSU MK2

Technical Specifications

Output to motor bi-phase
24 V AC protected by resettable fuse
Power consumption
7.2 W
Voltage
24 V AC
Power supply
Rega PS1 only
Speed control step size
0.01 RPM
PS1 (UK)
Input 230 V ~ 50 Hz 0.07 A / Output 24 V ~ 350 mA AC
PS1 (EU - Euro 2 pin)
Input 230 V ~ 50 Hz 0.07 A / Output 24 V ~ 350 mA AC
PS1 (American)
Input 115-120 V ~ 60 Hz / Output 24 V ~ 350 mA AC
PS1 (Australian)
Input 230 V ~ 50 Hz 0.07 A / Output 24 V ~ 350 mA AC
PS1 (Japan)
Input 100 V ~ 50/60 Hz / Output 24 V ~ 350 mA AC
PS1 (Korea)
Input 220 V ~ 60 Hz 0.07 A / Output 24 V ~ 350 mA AC

Product Downloads

Complementary Components

24v_upgrade_card_23a

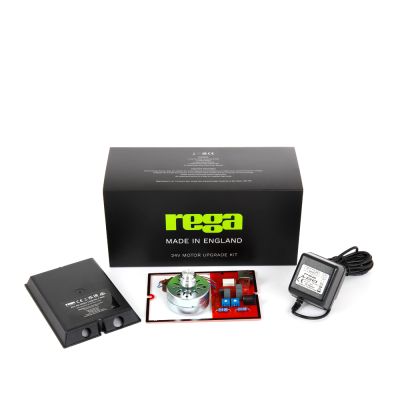

24v Motor Upgrade Kit

  • Individually hand tuned PCB to minimise vibration
  • Rega designed 24v low vibration, low noise synchronous AC motor assembly
  • Rigidly mounted to improve start up speed over previous suspended Planar models
  • Guaranteed to improve drive, speed stability and sonic performance
Rega Planar 3 Turntable

Planar 3

  • RB330 tonearm
  • Elys 2 (optional)
  • 12 mm opti-white polished glass platter
  • Double brace technology
  • 24 V low noise motor
  • Compatible with Neo power supply
  • Clear dust cover
  • Advanced EBLT drive belt
