Rega Fono Mini A2D MK2 MM Phono Stage
Rega Fono Mini A2D MK2 MM Phono Stage

Fono Mini A2D MK2

The Fono Mini A2D is a compact high quality moving magnet disc stage with a circuit based on our multi award winning Fono MM. Our best selling phono stage also includes a USB interface which allows you to transfer your beloved vinyl to digital audio files.

Rega Fono Mini A2D MK2 MM Phono Stage

Analogue to Digital

The Fono Mini A2D is a high-quality phono pre-amplifier for use with any moving magnet cartridge. The addition of a USB interface allows you to easily transfer vinyl to your PC if required. The restyled Fono Mini A2D amplifier offers improved usability, exceptional performance and incredible value for money while promising to be a valuable addition to any hi-fi set up.

Key Features

  • Compatible with all moving magnet cartridges
  • USB output
  • A2D functionality
  • Compact custom case design
  • Adjustable gain level to optimise quality when recording to PC
  • Lifetime warranty against manufacture defects

To transfer vinyl to your PC, you will need to install a digital audio editor. Such software is widely available as a free download (such as Audacity), from the internet. This is a simple interface which allows monitoring of volume and balance whilst transferring your audio to your PC hard drive.

Audio editing software includes a level meter which indicates the output level achieved when playing a piece of vinyl. You should adjust the output as necessary via the ‘Level’ control located on the front panel. Always take special note of record levels to ensure optimum recording quality.

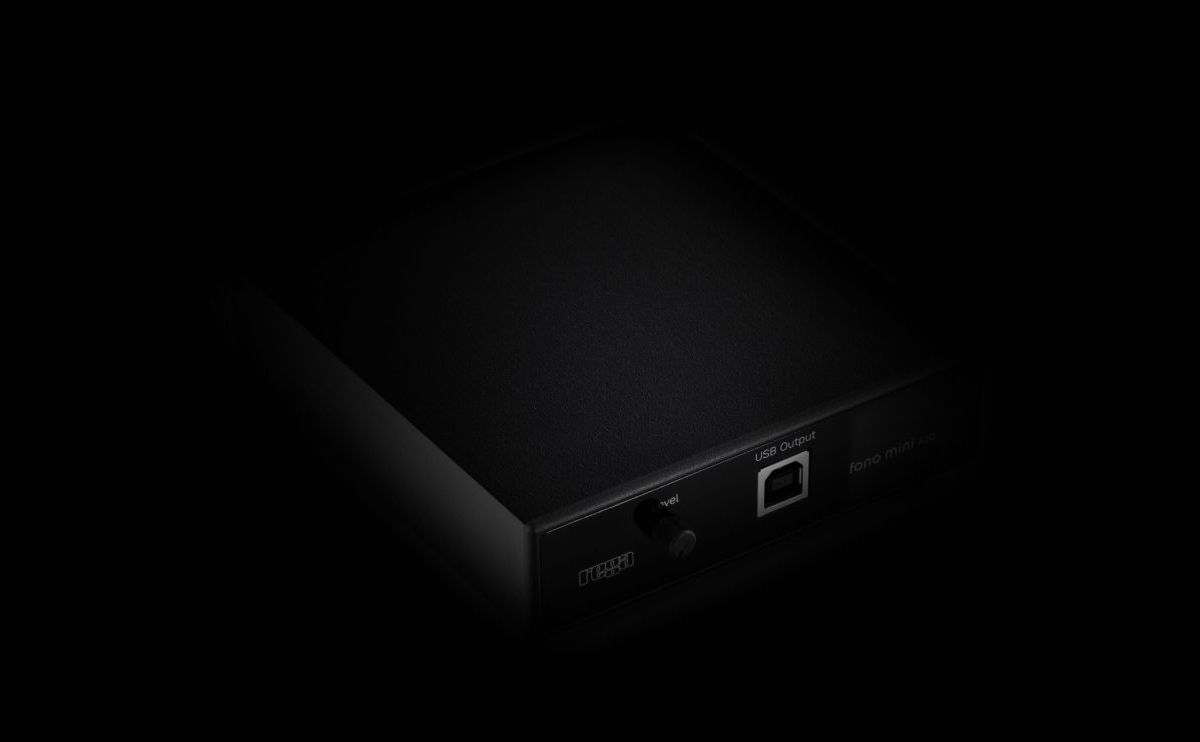

Rega Fono Mini A2D MK2 MM Phono Stage Rear (No LED)
Fono Mini A2D MK2 icon

Technical Specifications

Input Sensitivity

5 mV for 500 mV Output

Input Loading

47 k +100 pF

Maximum input level

70 mV @ 1 kHz

Output Impedance

100 Ω

Signal to noise ratio

78 dBA ref 5 mV

Power requirements

24 V AC 85 mA

Input for full scale digital output

7.5 mV

Dimensions (W × H × D)

102 × 30 × 125 mm

Sample rate

16bit 44.1kHz (48kHz max) when transferring files via USB.

For full technical specifications, download Fono Mini A2D MK2 - User Manual Multilingual - Ver 8 below.

Downloads

Environmental Labelling of Packaging

Timing has always been one of the Fono Mini A2D’s defining talents - it delivers tracks with zest and enthusiasm without skipping a beat, and this latest revisiting only confirms it is yet to be bettered by its rivals.

What Hi-Fi?

Complementary Components

Rega Planar 1 Plus Turntable

  • RB110 tonearm
  • Carbon cartridge fitted
  • Phenolic resin platter
  • 24 V low noise motor
  • Low mass plinth
  • Clear dust cover
  • Advanced EBLT drive belt
Rega Planar 2 Turntable

  • RB220 tonearm
  • Rega Carbon cartridge fitted
  • New Walnut effect finish for 2022
  • 10 mm glass platter
  • 24 V low noise motor
  • Three high gloss acrylic skin finishes
  • Clear dust cover
  • Advanced EBLT drive belt
Rega Planar 3 Turntable

  • RB330 tonearm
  • Elys 2 (optional)
  • 12 mm opti-white polished glass platter
  • Double brace technology
  • 24 V low noise motor
  • Compatible with Neo power supply
  • Clear dust cover
  • Advanced EBLT drive belt

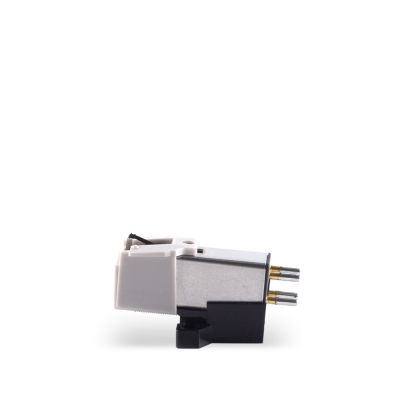

Rega Carbon MM Moving Magnet Cartridge

  • Carbon cantilever
  • Elliptical profile
  • Detachable stylus
  • 2–3 g tracking pressure

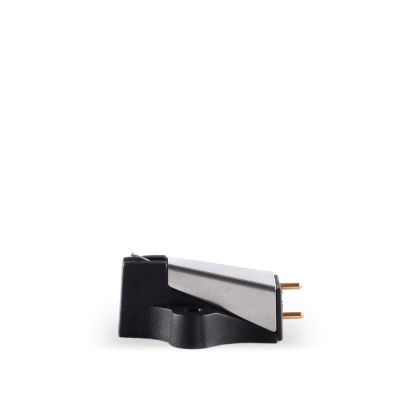

Rega RB78 MM Moving Magnet Cartridge

  • Handmade
  • Elliptical profile
  • Mono cartridge
  • 1.75 g tracking pressure
  • For 78 recordings
